3.0.0 · QGIS 3.44.15

Transformer

Decide which Antony collectors go into the inspection file.

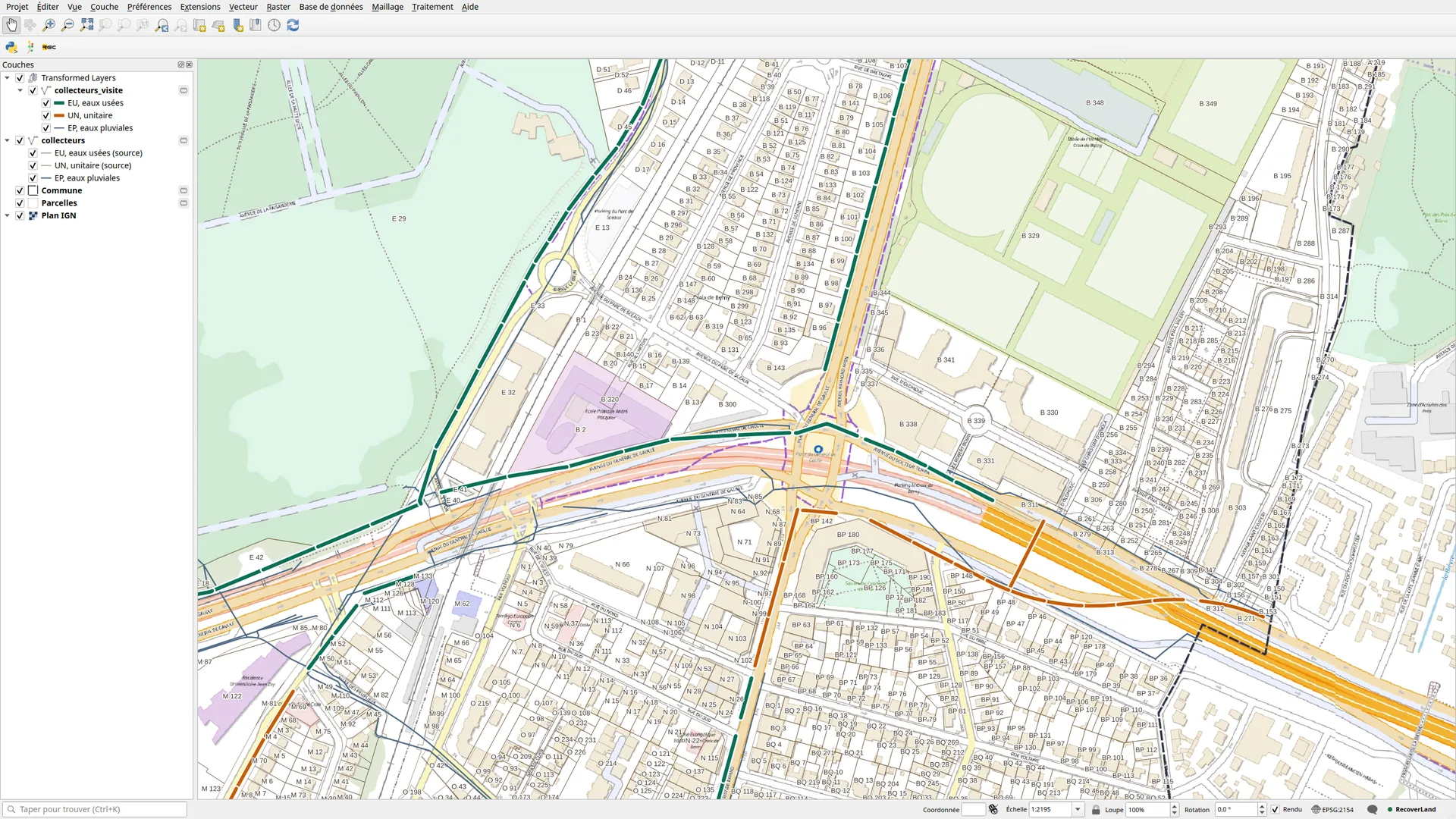

Visit layer drawn over the Antony network, storm sewers left on the source.
On the Antony extract (INSEE 92002) the source holds 1,980 reaches: 757 EU, 1,131 EP, 92 UN. collecteurs_visite keeps 553 reaches, 20,472 m. Storm sewers stay on the source. Fields: code_insee, reseau, nature, longueur_m. CRS EPSG:2154.

The rule is written once: network EU or UN, length at least 20 m. Transformer applies it to the collecteurs layer already open, and writes the memory table collecteurs_visite. Export and PostgreSQL publication are in the plugin. This session does not publish.

3,685 downloads as of 23 Oct 2026

Step 1 of 6

The commune, on Plan IGN

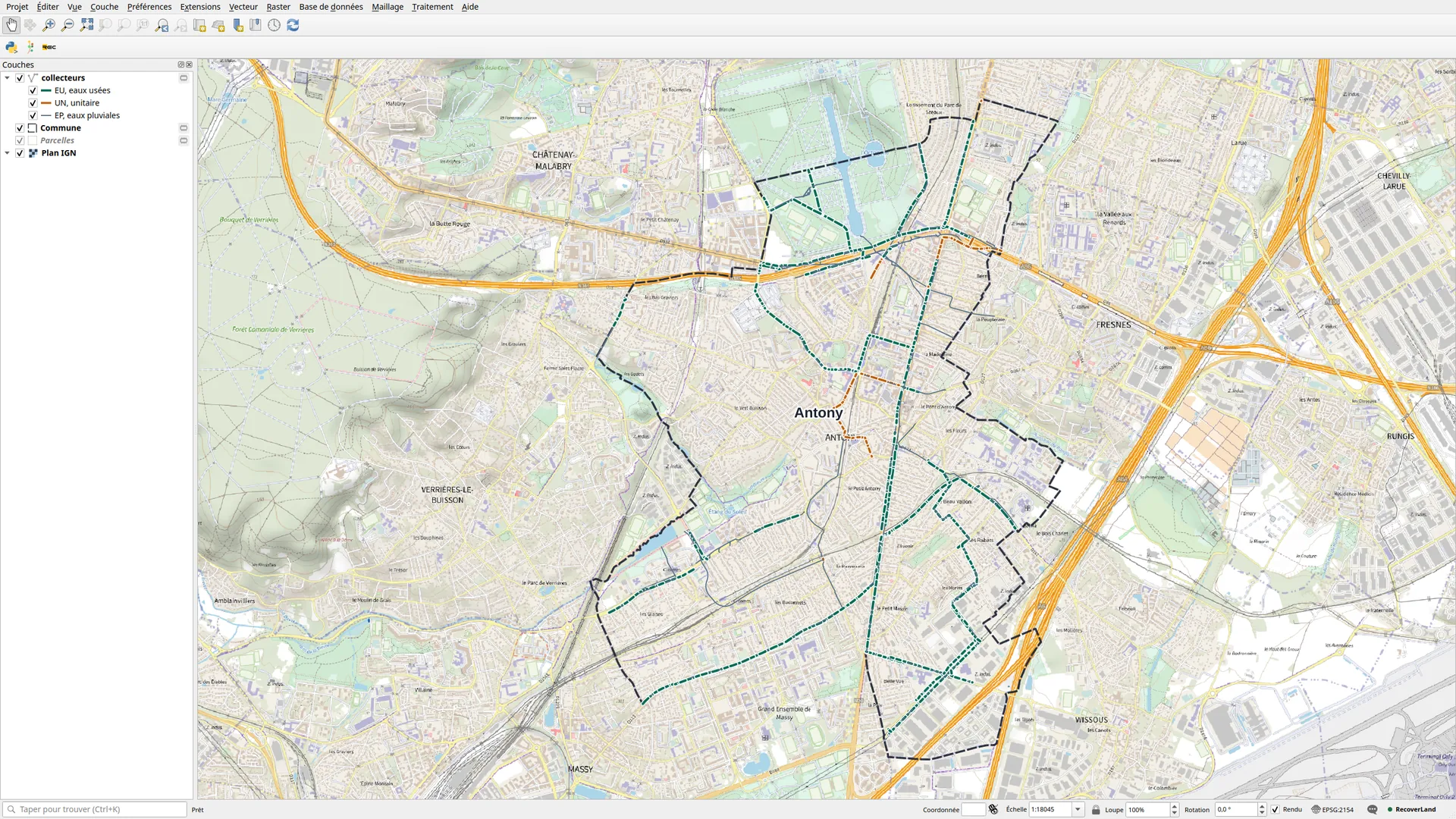

Step 1. The commune, on Plan IGN. Antony, Lambert-93. Departmental sewers on the IGN map. Foul sewers in green, combined in orange, storm in a thin stroke. The black line is the commune outline.

QGIS view of Antony with departmental sewers on the Plan IGN basemap.

Antony, Lambert-93. Departmental sewers on the IGN map. Foul sewers in green, combined in orange, storm in a thin stroke. The black line is the commune outline.

Arrow keys change the step. Escape closes full screen. Swipe on the image.

The same session, as a film

1080p, no audio. French and English captions. WebM and MP4. The film uses the same frames as the tour.

Open data in this session

Captured in QGIS 3.44.15 LTR Solothurn, French interface, project in Lambert-93 (EPSG:2154). Open data: Hauts-de-Seine departmental sewers (Licence Ouverte), Etalab cadastral parcels, the commune outline from geo.api.gouv.fr, Plan IGN basemap. This is not client data. The pages serve the recorded images and video. They do not call IGN or data.gouv.fr when you open them.

Installation

metadata.txt for 3.0.0: QGIS 3.28 to 4.99. The README targets QGIS 3.44 or higher. Release 3.0.0 removes Joiner and Pipeline Builder. Captured on QGIS 3.44.15 LTR Solothurn. The dialog is in English.

  • In QGIS: Plugins, Manage and Install Plugins, then the official repository.
  • The source is on GitHub, under the same name as the published plugin.
plugins.qgis.org(opens in a new tab)GitHub(opens in a new tab)

Designed and maintained by Youcef ADDA (GEODECI).
